Low Angle Ring Light

Inquiry Now

Detail




Low Angle Ring Lights



LEDs are arranged in low angle to provide side illumination.   Ring shape with diffusing illumination, even light beam in large square, without shadow.

Model Number demostration
RL Series O.D. (mm) LED Angle Color
RL50-00 50 0 degree B(blue)

Product features.
1. Compact size.
2. High brightness illumination.
3. Convenient installation.

Application

1. Inspection for surface scratches
2. Identification of printing character, logo, barcode, fingerprint etc.

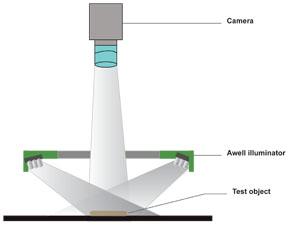

Light working diagram





Detailed Specifications

SeriesModel No.ColorO.D.I.D.Power ConsumptionAngle
RLRL50-00R/GBW50mm20mm24V/1.9W 24V/2.9W 0°
RL60-00R/GBW60mm30mm24V/2.2W24V/3.4W
RL74-00R/GBW74mm38mm24V/1.9W24V/2.9W
RL96-00R/GBW90mm60mm24V /3.8W24V /5.8W
RL120-00R/GBW120mm86mm24V/4.3W 24V/7.2W
RL146-00R/GBW150mm104mm24V/9.1W 24V/14.9W
RL172-00R/GBW172mm130mm24V/10.1W 24V/15.1W



SeriesModel No.ColorO.D.I.D.Power ConsumptionAngle
RLRL50-30R/GBW50mm25mm24V/1.9W 24V/2.9W 30°
RL60-30R/GBW60mm35mm24V/2.2W24V/3.4W
RL74-30R/GBW74mm40mm24V/1.9W24V/2.9W
RL90-30R/GBW90mm51mm24V /3.8W24V /5.8W
RL120-30R/GBW120mm80mm24V/4.3W 24V/7.2W
RL150-30R/GBW150mm112mm24V/9.1W 24V/14.9W
RL180-30R/GBW180mm132mm24V/10.1W 24V/15.1W
RL210-30R/GBW210mm174mm24V/13W 24V/21.6W

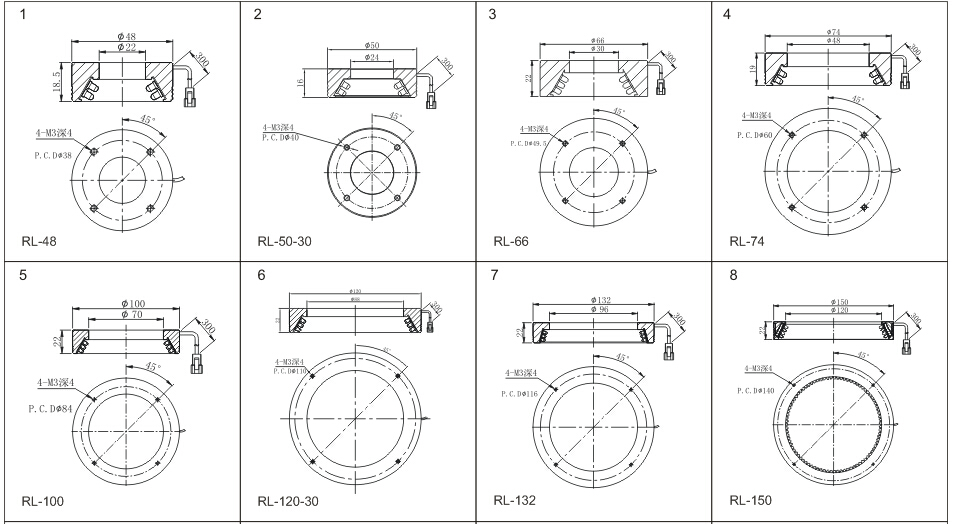

Diagram Presantation





Warranty

All the Awell illumination lights are secured with one year's warranty period.
