High Even Bar lights
High even bar lights is made of high density SMT LED Array, it's featured with highest brightness and high balance lights.
Model Number demonstration
| HLD Series | Emitting Length(mm) | Emitting Width(mm) | Color |
| HLD-30x16 | 30 | 16 | R(red) |
Product Features
1. Lighting size can be customized.
2. Light angle is adjustable.
3. Convenient installation, compact design.
Applications

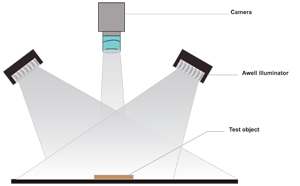

Light working diagram
Detailed specifications.
| Series | Model No. | Voltage | Power Consumtion | Color | |
| HLD- ##16 | HLD-30X16 | 24V | 0.5W | 0.7W | R/W/B/G |
| HLD-60X16 | 24V | 1.0W | 1.4W | R/W/B/G | |
| HLD-90X16 | 24V | 1.4W | 2.2W | R/W/B/G | |
| HLD-120X16 | 24V | 1.9W | 2.9W | R/W/B/G | |
| HLD-150X16 | 24V | 2.4W | 3.6W | R/W/B/G | |
| HLD-180X16 | 24V | 2.9W | 4.3W | R/W/B/G | |
| HLD-210X16 | 24V | 3.4W | 5.0W | R/W/B/G | |
| HLD-240X16 | 24V | 3.8W | 5.8W | R/W/B/G | |
| HLD-270X16 | 24V | 4.3W | 6.5W | R/W/B/G | |
| HLD-300X16 | 24V | 4.8W | 7.2W | R/W/B/G | |
| HLD-330X16 | 24V | 5.3W | 7.9W | R/W/B/G | |
| HLD-360X16 | 24V | 5.8W | 8.6W | R/W/B/G | |
| HLD-390X16 | 24V | 6.2W | 9.4W | R/W/B/G | |
| HLD-420X16 | 24V | 6.7W | 10.1W | R/W/B/G | |
| HLD-450X16 | 24V | 7.2W | 10.8W | R/W/B/G | |
| HLD-480X16 | 24V | 7.7W | 11.5W | R/W/B/G | |
| HLD-510X16 | 24V | 8.2W | 12.2W | R/W/B/G | |
| HLD-##30 | HLD-25X30 | 24V | 0.7W | 1.2W | R/W/B/G |
| HLD-50X30 | 24V | 1.4W | 2.4W | R/W/B/G | |
| HLD-75X30 | 24V | 2.2W | 3.6W | R/W/B/G | |
| HLD-100X30 | 24V | 2.9W | 4.8W | R/W/B/G | |
| HLD-125X30 | 24V | 3.6W | 6.0W | R/W/B/G | |
| HLD-150X30 | 24V | 4.3W | 7.2W | R/W/B/G | |
| HLD-175X30 | 24V | 5.0W | 8.4W | R/W/B/G | |
| HLD-200X30 | 24V | 5.8W | 9.6W | R/W/B/G | |
| HLD-225X30 | 24V | 6.5W | 10.8W | R/W/B/G | |
| HLD-250X30 | 24V | 7.2W | 12.0W | R/W/B/G | |
| HLD-275X30 | 24V | 7.9W | 13.2W | R/W/B/G | |
| HLD-300X30 | 24V | 8.6W | 14.4W | R/W/B/G | |
| HLD-325X30 | 24V | 9.3W | 15.6W | R/W/B/G | |
| HLD-350X30 | 24V | 10.1W | 16.8W | R/W/B/G | |
| HLD-375X30 | 24V | 10.8W | 18.0W | R/W/B/G | |
| HLD-400X30 | 24V | 11.5W | 19.2W | R/W/B/G | |
| HLD-425X30 | 24V | 12.2W | 20.4W | R/W/B/G | |
| HLD-450X30 | 24V | 13.0W | 17.3W | R/W/B/G | |
| HLD-475X30 | 24V | 13.7W | 22.8W | R/W/B/G | |
| HLD-500X30 | 24V | 14.4W | 24.0W | R/W/B/G |
Warranty.
All the Awell illumination lights are secured with one year's warranty period.
