Coaxial Lights Series

Inquiry Now

Detail


Coaxial Lights Series



Reduce the surface reflection and show the uneven surface informaiton. Best choice for the inspection of surface scratches, flaw, damage etc.



Model number demonstration

COA Series Emitting Length (mm) Color
COA-30 30 R (red)



Product features
1. Special heat transfer design for a long service life  time
2. High density led chip array, allows high class illumination brightness
3. Special coated beam splitter to prevent light loss.


Applications


1. Inspection of the breakage on the chip parts and silicon wafers.
2. The mar positioning
3. Inspection of the scratches on the highly reflective surfaces
4. The identification of label on the packaging
5. The identification of laser marking characteristics and 2D code.

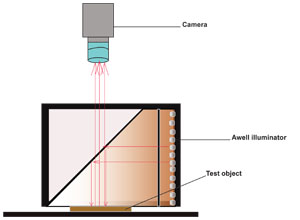

Light working diagram







Detaied specificatiaons.



SeriesModelVoltageColorPowerDimensionsDiagrams
RW/B/GLmmWmmHmm
CO/COSQ  CO-2024VR/W/B/G0.8W2.2W4630261
  CO-3024VR/W/B/G2.0W2.5W5638362
  COSQ-4024VR/W/B/G1.5W3.7W5250473
  CO-5024VR/W/B/G4.8W6.5W8760594
  CO-6024VR/W/B/G5.3W6.0W9568675
  CO-7024VR/W/B/G9.5W10.5W11384806
  CO-10024VR/W/B/G15.0W22.0W141.51101077
  CO-12024VR/W/B/G17.0W27.0W165.51331328
  CO-150X12024VR/W/B/G21.5W33.7W213.71581289





Guarantee

All the Awell illumination lights are secured with one year's warranty period.
