Direct Ring Type ( High Angle Ring Lights)
Product features.
1. Light Angle adjustable.
2. Convenient Installation, compact design.
3. High intense brightness.
4. Suitable for Microscope illumination, LCD recorrection, Label inspection.
Other Application: substrate inspection, label inspection, flat surface, fiducially recognition
Model number demostration
| RL Series | O.D. (mm) | Led angle | Color |
| RL28-60 | 28 | 60 degree | R(red) |

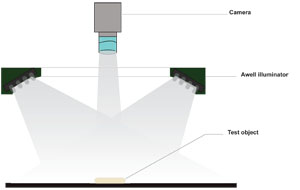

Light Working Diagram
Detailed Specifications.
| Series | Model No. | Color | O.D. | I.D. | Power Consumption | Angle | |
| RL | RL28-60 | R/GBW | 28mm | 10mm | 24V/0.2W | 24V/0.5W | 60° |
| RL50-60 | R/GBW | 55mm | 24mm | 24V/1.0W | 1.0V/1.7W | ||
| RL60-60 | R/GBW | 70mm | 36mm | 24V/1.7W | 1.7V/2.4W | ||
| RL66-60 | R/GBW | 90mm | 40mm | 24V/2.2W | 2.2V/3.4W | ||
| RL70-60 | R/GBW | 100mm | 40mm | 24V/2.4W | 2.2V /3.6W | ||
| RL74-60 | R/GBW | 110mm | 70mm | 24V/2.6W | 24V/3.8W | ||
| RL90-60 | R/GBW | 120mm | 90mm | 24V/2.9W | 24V/4.3W | ||
| RL100-60 | R/GBW | 150mm | 25mm | 24V/4.3W | 24V/7.2W | ||
| RL120-60 | R/GBW | 165mm | 55mm | 24V/8.6W | 24V/13W | ||
| RL150-60 | R/GBW | 200mm | 70mm | 24V/8.9W | 24V/14.4W | ||
| RL180-60 | R/GBW | 150mm | 25mm | 24V/9.2W | 24V/14.8W | ||
| RL200-60 | R/GBW | 165mm | 55mm | 24V/9.6W | 24V/16.1W | ||
Warranty.
All the Awell illumination lights are secured with one year's warranty period.
