AOI Lights
Description: Multiple colors shinning from the bowl shape light, light angles're also adjustable. It can use together with our coaxial lights which will commit better image comeout.
Model Number Demonstration
|
AOI Series |
Emitting Area |
Color |
|
AOI- |
200 |
R(red) |
Product features
1. Mutiple colors with different reflecting angles, best choice for muti-layer surface.
2. Broad industrial usage, feasible for PCB missing parts, mistake parts, poor soldering, wrong pollarity etc.
Applications
1. PCB soldering
2. Flaw, imperfection inspection for muti-layer surface.

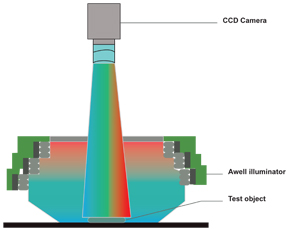

Light working diagram
Detailed Specifications
|
Series |
Model |
Voltage/Power |
O.D. (mm) |
I.D. (mm) |
Height (mm) |
|
AOI |
AOI-200RGB |
24V/27W |
198 |
42 |
68.75 |
|
AOI |
AOI-200-35RGB |
24V/38.5W |
200 |
35 |
76.4 |
Guarantee
All the Awell illumination lights are secured with one year's warranty period.
