Diffuse light

Inquiry Now

Detail


High Brightness Diffused Ring Lights



Description: Facilitate with the diffuse plate, it creates even and soft illumination.



Model number demonstration



HBD Series Emitting Area (mm) Color
HBD-100R 100 R ( red)



Product features



1. All the light goes through the diffuse plate, it becomes more even and softer.
2. Clear image output

Applications
1. Inspection for dirty point or petty damage
2. Appearance and color identification
3. Character identification
4. Printing recognition

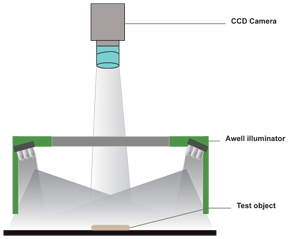

Light working diagram




Detailed specifications

SeriesModelColorVoltage/PowerDimensionsDiagrams
O.D.mmI.D.mmHeight(mm)
HBD  HBD-100RR24V/9W1166626.51
  HBD-100WW24V/14W
  HBD-100BB
  HBD-150RR24V/16W16611626.52
  HBD-150WW24V/20W
  HBD-150BB
  HBD-250RR24V/25W26618018.93
  HBD-250WW24V/37W
 HBD-250BB



Guarantee

All the Awell illumination lights are secured with one year's warranty period.
