Shadowless Diffuse Ring Light

Inquiry Now

Detail

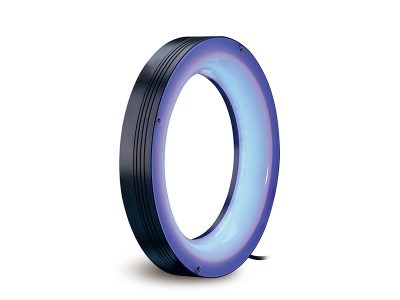

High Brightness Shadowless Ring Lights



Description: High brightness LED and diffuser with high emission to get high intensity shadowless area.



Model number demonstration



SRL Series Outer Diameter (mm) Color
SRL-120R 120 R (red)



Product features


1. Assembly with high power LED
2. High concentration and without shadow effect

Applications
1. Electronic part surface inspection
2. Cylider object inside surface diry point inspection

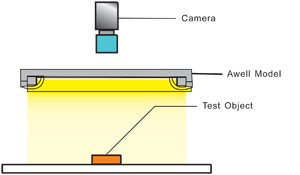

Light working diagram



Detailed specifications

Series Model Voltage Color Power Diagrams
R/W/B/G
SRL SRL120RGB 24V R/W/B/G 9.6W 1
SRL180RGB 24V R/W/B/G 19.2W 2
SRL245RGB 24V R/W/B/G 24.0W 3



Guarantee

All the Awell illumination lights are secured with one year's warranty period.
