Detail

Bottom Back Lights

Description: Can be applied in the large area illumination to enhance the high contrast sihouettes for high speed machine.

Model number demonstration

Product features

1. Measurement inspection of mechanical components

2. Inspection of IC pins and electronic parts

3. Inspection of transparen film

4. Detect scratching on transparent objects

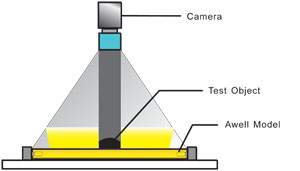

Light working diagram







Detailed specificaitons



Series	Model	Voltage	Color	Power		Dimensions
				R	W/B/G	Lengthmm	Widthmm	Heightmm
FL-  Flat Lights	FL-27X27	24V	R/W/B/G	1.0W	1.5W	49	37	16
	FL-43X35	24V	R/W/B/G	1.7W	2.5W	57	53	16
	FL-51X51	24V	R/W/B/G	3.5W	5.2W	73	61	16
	FL-63X60	24V	R/W/B/G	5.0W	8.5W	82	73	16
	FL-83X75	24V	R/W/B/G	6.5W	10.0W	97	93	16
	FL-100X100	24V	R/W/B/G	11.5W	17.0W	122	110	16
	FL-140X105	24V	R/W/B/G	12.5W	19.0W	150	127	16
	FL-160X120	24V	R/W/B/G	15.5W	24.0W	170	142	16
	FL-200X150	24V	R/W/B/G	21.8W	30.5W	210	172	16
	FL-211X200	24V	R/W/B/G	23.5W	33.0W	223	224	16
	FL-224X170	24V	R/W/B/G	26.5W	35.8W	234	212	16

Guarantee

All the Awell illumination lights are secured with one year's warranty period.
