High Angle Ring Light

Inquiry Now

Detail

Direct Ring Type ( High Angle Ring Lights)



Description: High-desity LED array with the intensity illumination.



Model Number Demonstration



RL Series O.D.mm Angle  Color
RL-70 70 90 R(red)

Product features
1. Compact size.
2. High brightness illumination.
3. Excellent heat transfer structure



Applications:

1. Inspection of plastic container
2. OCR on chips
3. PCB inspection
4. Used for the micrscope illumination
5. OCR on interrated circuit
6. Surface inspection

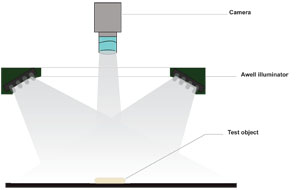

Light working diagram











Detailed Specification.



Series Model Voltage Colour Power Dimensions Diagrams
R W/B/G O.D.mm I.D.mm angle*1
RL   RL-32 24V R/W/B/G 0.8W 1.5W 32 10 70° 1
  RL-35-90 24V R/W/B/G 1.0W 1.5W 35 14 90° 2
  RL-42 24V R/W/B/G 1.5W 2.0W 42 18 65° 3
  RL-50 24V R/W/B/G 1.6W 3.0W 50 28 75° 4
  RL-50-60 24V R/W/B/G 1.5W 2.5W 50 24 60° 5
  RL-50-90 24V R/W/B/G 2.0W 3.5W 50 25 90° 6
  RL-66 24V R/W/B/G 3.5W 4.5W 66 30 60° 7
  RL-70 24V R/W/B/G 2.8W 5.0W 70 35 90° 8
  RL-74 24V R/W/B/G 4.5W 8.0W 74 35 60° 9
  RL-90 24V R/W/B/G 6.5W 9.0W 90 50 70° 10
  RL-90-80 24V R/W/B/G 8.0W 12.8W 90 30 80° 11
  RL-110 24V R/W/B/G 10.8W 12.0W 110 60 60° 12
  RL-114-80 24V R/W/B/G 17.5W 24.0W 114 30 80° 13
  RL-120 24V R/W/B/G 15.0W 18.0W 120 60 50° 14
  RL-120-45 24V R/W/B/G 10.5W 11.5W 120 80 45° 15
  RL-180 24V R/W/B/G 17.5W 24.0W 180 126 60° 16





Warranty.



All the Awell illumination lights are secured with one year's warranty period.





Hits:  1038       Update Time:  2022-07-05
Previous:  High Angle Ring Light
Next:  Shadowless Diffuse Ring Light

Related Product

Bar light unit

Bar light unit
Read More

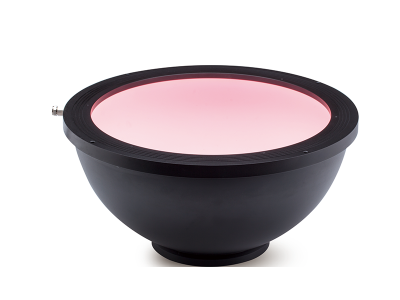

Dome Light
